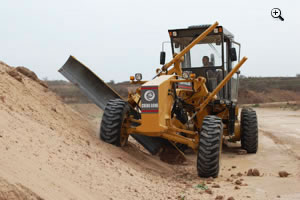

Standard Motor Grader

Standard Motor Grader

Features
1. Our MG 1320C standard motor grader is highly efficient and of good quality.
2. Its backward opening engine cover is made of glass-fiber reinforced plastics.
3. The driving axle of this standard motor grader uses an automatic control system for lubrication and oil temperature regulation.
4. It is enhanced by incorporating an imported multi-way valve, braking valve, and liquid filling valve.
5. It has a very strong rear frame, a traction frame and moldboard steering mechanism.
6. This standard motor grader has a spacious ROPS/FOPS cabin.
7. It is equipped with a shock absorbing seat and newly designed panel.
8. Electrical monitoring device
9. This heavy equipment machine also has a non-freon air conditioner.

High Performance Engine
Our MG 1320C standard motor grader is powered by Shanghai C6121 engine. It has a short lift cylinder and provides the motor grader with strong power.

Transmission System with Quick Response
This road grader is equipped with a German 6WG200 ZF electro-hydraulic shift transmission, which works with low energy consumption and little noise. The engine is: 6 speed in forward motion and 3 speed in reverse. It is applicable to different working conditions. Its electro shift and neutral start protection device make the shift easier and smoother. This transmission system greatly increases the machines stability and efficiency, reduces the maintenance cost, and extends its service life to over 10000 hours.

Side Shifted Working Implement
The side shift working implement is locked by an electro-hydraulic controlled taper pin. This gives it a wide moving range and high rigidity. The draw bar is of a solid core structure ("Y" type), which is able to endure heavy loads.

Durable Draw Bar and moldboard
- The "U" type solid framework is of high rigidity.
- The front ripper keeps the motor grader away from any interference and facilitates accurate shoveling.
- The turning circle is fixed on the draw bar by four adjustable metal plates and is driven by a hydraulic motor and turbine reducer.

Comfortable and Safe Driving Conditions
- The control panel of this standard motor grader adopts a short joystick, which is used for convenient operation of the working implements. The joystick is suitably designed and does not block the view of the driver.
- Our patented spring operation device can be rectified or fixed using the footplates.
- The switches and instruments are suitably designed for easy operation and protection of the motor grader driver.

Parameters
Specifications Unit Values
Operating Mass Front Axle kg 4580
Rear Axle kg 11820
Total Mass kg 16400
Diesel Engine Model C6121
Rated Power kW/hp 162/220
Rated Revolution r/min 2200
Overall Dimensions Standard L × W × H mm 8980×2600×3470
With Optional Parts L ×W × H mm 10876×2600×3470
Wheel-base Front Axle to Rear Axle mm 6290
Middle Wheel to Rear Wheel mm 1553
Tread Width mm 2150
Steering System Max. Front Wheel Steering Angle (°) ±45
Max. Articulated Wheel Steering Angle (°) ±20
Min. Turn Radius mm 8400
Moldboard Length mm/ft 3960/13
Height (Arched Length) mm 650
Max. Tilt Angle (°) 90
Rotating Angle (°) 360
Cutting Angle Adjusting Range (°) 42~73
Max. Lift above Ground mm 410
Max. Digging Depth under Ground mm 440
Max. Shoulder Reach (Left/Right) mm 1440/2090
Scarifier (Optional) Scarifying Width mm 1250
Max Scarifying Depth mm 280
Number of Teeth Shanks Piece 11
Rear-mounted Ripper (Optional) Max. Digging Width mm 2000
Max. Digging Depth mm 315
Number of Shanks Piece 5
Bulldozer (Optional) Width mm 2740
Height mm 920
Max. Dozing Depth mm 205

Note:
1. Working cycle time is equal to the sum of the raising time of the swing arm, the descending time of the swing arm, and the rolling time of the bucket.
2. All machines are subject to actual products. We reserve the right to make changes to configuration and specification of our products without prior notice due to the continuous technical improvement of CG constcution machines.

CG is located in Chengdu city of Sichuan province. We enjoy convenient transportation facilities. We are located 30 Km away from Chengdu Shuangliu airport. This convenient location enables our clients to incur low shipping costs. As a professional motor grader in China, we are able to offer our clients different wheel loaders, backhoe loaders, motor graders and more heavy equipment vehicles of different specifications. These products are are exported to Egypt, Algeria, Morocco, UK, Germany, France, and Russia, among other countries. Please contact us for you motor grader needs!
