Home » Products » Backhoe Loader » Standard Backhoe Loader » 866H Backhoe Loader

Backhoe Loader

 Backhoe Loader

Features

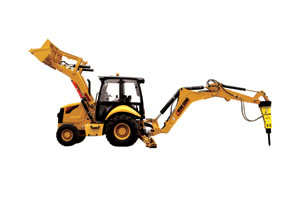

866H standard backhoe loader comes with the following features.
1. It adopts HUSCO hydraulic components.
2. The spacious cab of this standard backhoe loader is provided with an adjustable, air-suspending and shock absorbing seat.
3. Its integrated engine cover can be opened backwards.
4. This heavy equipment vehicle has an excavator-style curved arm.
5. This standard backhoe loader can be provided with an optional extension arm.
6. It is also equipped with a bucket return-to-dig system.
7. This standard backhoe loader adopts a Carraro transmission system.
8. Single tilt loader linkage.
9. Standard arm.

Parameters
Main Specification 866H
Engine Model 4BTA3.9
Rated Power/Rated Revolution (Kw/R/MIN) 82/2200
Operating Mass (kg) 9200
Overall Dimensions Overall Size (L×W×H) (mm) 7313×2440×3920
Loader Dump Height (mm) 2700
Discharge (°) 45
Dump Reach(mm) 710
Lift Capacity to Full Height (kN) 35.3
Bucket Breakout Force (kN) 60
Bucket Capacity (m3) 1.1
Backhoe (Standard/ Withdrawal/ Extension) Digging Reach at Ground Level (mm) 5990/6100/7184
Max. Digging Depth (mm) 4649/4769/5915
Max. Working Height (mm) 5917/6002/6827
Max. Dump Clearance (mm) 4168/4252/5078
Bucket Dig Force (kN) 73.1/72.2/72.2
Stick Dig Force (kN) 43.8/42/29.9
Bucket Capacity (m3) 0.18-0.3

Note:
1. Working cycle time equals to the sum of the raising time of the swing arm, the descending time of the swing arm, and the rolling time of the bucket.
2. All machines are subject to actual products. We reserve the right to make changes regarding the configuration and specification of our products without prior notice due to the continuous technical improvements of CG construction machines.

We have been a backhoe loader manufacturer in China since 1950. These 60 years of experience teaches us how to manufacture competitive wheel loaders, backhoe loaders, motor graders and more heavy equipment machines. With stable performance and lower prices, our backhoe loaders are exported to many countries like Brazil, Argentina, Vietnam, USA, UK, Germany, Russia, Egypt and more countries. For more information about our backhoe loaders, please keep browsing or contact us directly. Thank you!
