Top Class Wheel Loader

Top Class Wheel Loader

Features

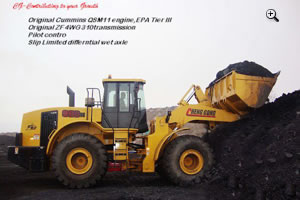

1. CG990H (CE) Top Class wheel loader is in conformity with Euro CE standards.
2. This bucket loader is power by a Cummins QSM11 engine and meets European Emission Stage III/EPA Tier III standards.
3. Its original ZF 4WG 310 transmission makes it easy to operate and gives it better efficiency.
4. It has a world-class pilot control, emergency steering function and electronic rear review function.
5. Its ROPS/FOPS cab is spacious and has an operation box fixed to the seat.
6. The electronically controlled engine cover of this Top Class wheel loader is able to open backwards for easy maintenance activities.
7. It has installment boxes and centered grease nipples.
8. This Top Class wheel loader has an automatic electronic monitoring system and alarm.

Outstanding Performance
1. The hinge joint is located in the center of the wheelbase. The wheel loader has a minimum turning radius. The dumping load is more than 19 tons.
2. Cummins QSM11 engine
- Cummins QSM11 engine meets European Emission Stage III/EPA Tier III standards.
- It is powerful, supercharged, electronically controlled and has air to air intercooling.
- The power is 250kW/2100.
- The maximum torque is 1674N.m/1400r.
- The lowest start temperature is -12℃.
3. This Top Class wheel loader is equipped with an imported ZF automatic transmission from Germany. It provides easy operation and high working efficiency.
4. Drive axle
- Wet brake: in an enclosed structure, with the brake piece immersed in the oil. Wet brake works undisturbed by the external conditions. It produces no sparks and therefore has wider
applications. The stopcock is repositioned by a spring to avoid getting stuck.
- Limited Slip Differential: allows some difference in angular velocity of the output shafts, but imposes a mechanical bound on the disparity. It improves the overall driving force and enhances the dynamic performance of our CG990H (CE) Top Class wheel loader.
- Positive cooling front and rear axles. When the oil temperature of the axle reaches 70℃, the cooling system starts to work.

Comfortable Driving Conditions
1. CG990H (CE) Top Class wheel loader has a large, comfortable ROPS, FOPS cab, which is equipped with useful accessories.
- The angle of the steering wheel is adjustable.
- The seat and operation devices can be adjusted at any direction.
- The operation box is designed to be connected to the seats. This design is nationally patented.
- Single joystick control

Simple Maintenance
1. Engine cover
The engine cover is electronically controlled and opens backwards. This facilitates easy maintenance.
2. Radiator
The radiator could be opened for daily maintenance of its core. This will help maintain the heat dissipation efficiency of the radiator and the overall performance of the wheel loader.

Other Safety and Convenient Configurations
1. This Top Class wheel loader comes with a pilot locking device, which works to avoid false operation.
2. Emergency steering system
3. Electronic rear-view system
4. This wheel loader has a level-3 alarm system and an electronic monitoring device.

Parameters
Operating weight 31500-32000kg
Load capacity 9000kg
Rated Capacity 4.5-6.8m3
Max. Traction Force 260kn
Breakout Force 260kn
Working cycle time 12s
Max. dumping height 3313mm
Max. dumping reach 1317mm
Max. gradeability 250
Wheelbase 3600mm
Wheel track 3250mm
Min. turning radius 6882mm
Max. speed (forward) 32km/h
Length 9459mm
Width 3579mm
Height 3821mm
Engine Cummins QSM11
Rated power of engine 250kw

Note:
1. Working cycle time equals the sum of the raising time of the swing arm, the descending time of the swing arm, and the rolling time of the bucket.
2. We reserve the right of make changes to the configuration and specification of our products without prior notice due to the continuous technical improvement of CG construction machines.

Sichuan Chengdu Chenggong Construction Machinery Co., Ltd. is a wheel loader manufacturer and supplier located in China. Established in 1950, we have 60 years of experience in the manufacture of wheel loaders. Apart from wheel loaders, we are also engaged in the research and manufacture of backhoe loaders, and motor graders. These construction machines are of low prices and high quality. They are therefore exported to over 60 countries including Egypt, Algeria, Morocco, UK, Germany, France, Russia, India, Vietnam, USA, Canada, Brazil, Argentina, Australia and more. You can count on the quality and reliability of our wheel loaders, which are ISO9001, CE, TIRE III, and GOST certified.
