Features

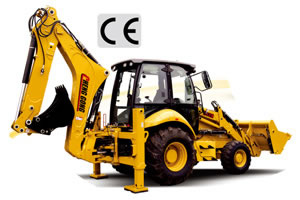

1. The 862H (CE) backhoe loader uses the original Cummins engine meeting the Tier III standard.
2. The backhoe loader employs the PCLS pilot control hydraulic system having excellent controlling performance, so as to enable the machine to meeting various operation requirements.
3. The frame with sidesway is characterized by large bearing capacity and durability.
4. With the eight-connecting bar structure, the machine features sound translation motion and multi-functions.
5. The wheel loader is also equipped with holding valve and emergency steering.
| Main specification | Item | 862H | 866HTC | 866H |
| Engine | Model | Cummins QSB4.5/ Dongkang 4BTAA3.9 | Dongkang 4BTAA3.9(Cummins QSB4.5) | Dongkang 4BTA3.9/4BTAA3.9 |
| Total power/rotational speed (kW/rpm) | 82/2200 | 82/2200 | 82/2200 | |
| Operating mass (kg) | 10400 | 9700 | 9200 | |
| Overall dimension | L×W×H (mm) | 5934×2440×3966 | 7461×2440×3920 | 7313×2440×3920 |
| Loader | Dump height (mm) | 2700 | 2700 | 2700 |
| Discharge angle (°) | 45 | 45 | 45 | |
| Dump reach (mm) | 787 | 787 | 710 | |
| Lift capacity to full height (kN) | 34 | 34 | 33.7 | |
| Bucket breakout force (kN) | 58.8 | 58.8 | 60 | |
| Bucket capacity (m3) | 1.15 | 1.15 | 1.1 | |
| Excavation (standard /withdraw/extension) | Digging reach at ground level (mm) | 5990/6090/7175 | 5990/6100/7184 | |
| Max. digging depth (mm) | 4545/4658/5804 | 4621/4741/5887 | ||
| Max. working height (mm) | 5993/6085/6910 | 5917/6002/6827 | ||
| Dump height (mm) | 4244/4335/5161 | 4168/4252/5078 | ||
| Bucket dig force (kN) | 73.1/72.2/72.2 | 73.1/72.2/72.2 | ||
| Stick dig force (kN) | 43/42/30.4 | 43/42/30.4 | ||
| Bucket capacity (m3) | 0.18-0.3 | 0.18-0.3 | ||
