Features

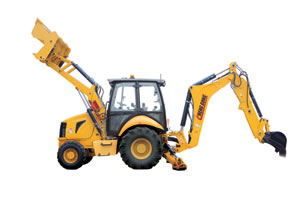

1. 866HTC Backhoe Loader is powered by a Tier III engine.
2. It is supported by HUSCO hydraulic components.
3. Its spacious cab has an adjustable, air-suspending and shock absorbing seat.
4. The engine of this Top Class backhoe loader can be opened backwards for easy engine access during maintenance.
5. It has a professional excavator-style curved arm.
6. This Top Class backhoe loader can also be equipped with an optional extension arm.
7. It also adopts bucket return-to-dig system.
8. Carraro transmission
9. PCLS hydraulic pilot control system
10. This loader backhoe has an extension arm.
11. Tool carrier loader linkage.
| Main Specification | 866HTC | |
| Engine | Model | 4BTA3.9 |
| Rated Power/Rated Revolution (Kw/r/min) | 82/2200 | |
| Operating Mass (kg) | 9700 | |
| Overall Dimensions | Overall Size (L×W×H) (mm) | 7461×2440×3920 |
| Loader | Dump Height (mm) | 2700 |
| Discharge (°) | 45 | |
| Dump Reach (mm) | 787 | |
| Lift Capacity to Full Height (kN) | 34 | |
| Bucket Breakout Force (kN) | 58.8 | |
| Bucket Capacity (m3) | 1.15 | |
| Backhoe (Standard/ Withdrawal/ Extension) | Digging Reach at Ground Level (mm) | 5990/6100/7184 |
| Max. Digging Depth (mm) | 4649/4769/5915 | |
| Max. Working Height (mm) | 5917/6002/6827 | |
| Max. Dump Clearance (mm) | 4168/4252/5078 | |
| Bucket Dig Force (kN) | 73.1/72.2/72.2 | |
| Stick Dig Force (kN) | 43.8/42/29.9 | |
| Bucket Capacity (m3) | 0.18-0.3 | |
Note:
1. Working cycle time is equal to the sum of the raising time taken by the swing arm, the descending time of the swing arm, and the rolling time of the bucket.
2. All machines are subject to actual products. We reserve the right to make changes to the configuration and specification of our products without prior notice due to the continuous technical improvements of CG heavy equipment vehicles.
CG is a professional Top Class backhoe loader manufacturer. We are engaged in the manufacture of different wheel loaders, backhoe loaders, motor graders and more construction machines. Our Top Class backhoe loaders are of stable performance and simple operation. They are all ISO9001: 2000, CE, TIRE III, and GOST certified. At Chengdu city of Sichuan province, we welcome backhoe loader manufacturers and purchasers to visit us and help improve the quality of our products!
CG Top Class backhoe loaders are generally characterized by the following features.
1. Our Top Class backhoe loaders meet Euro CE standards.
2. ROPS/FOPS cab
3. The imported engines meet European Emission Stage III/EPA Tier III standards. The homemade engines do not meet these standards.
Established in 1950, CG is a Top Class backhoe loader manufacturer and supplier located in China. Our major products include wheel loaders, backhoe loaders and motor graders. These products are ISO9001: 2000, CE, TIRE III, and GOST certified and exported to over 60 countries including Algeria, Morocco, UK, Germany, France, Russia, India, Vietnam, USA, Canada, Brazil, Argentina, Australia, and more. At Chengdu city of Sichuan province, we are looking forward to working with you!
